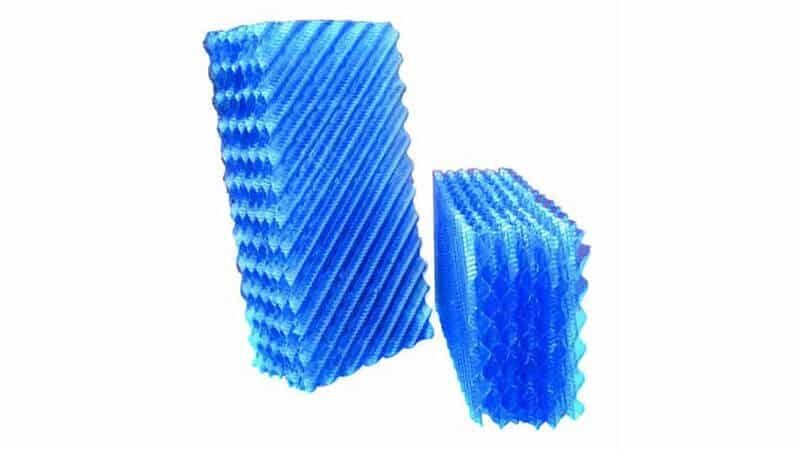

PVC Fills

  • Cooling Tower PVC Fills
  • Cooling Tower Fills
  • Cooling Tower Fills Manufacturer
  • Cooling Tower PVC Fills Supplier

Owing to the immense experience and a competent team of experts, we are able to offer PVC Fills to respectable clients. These PVC fills offered by us are made utilizing high-grade raw material, which is sourced from trustworthy vendors of the market. In addition to this, the offered range of PVC fills is applicable in humidification, effluent treatment, power, petrochemical, refining, paper chemical, steel and allied industries. This PVC Cooling Tower Fills is known for distributing the liquid and gas across the many interconnected channels within the surface material. For inducing highly turbulent mixing between the water and the air, which increases heat and moisture transfer, cross fluted designs are introduced.

Features:

  • Light Weight
  • Lower operating cost
  • Fire Safe
  • Comfortable habitation
  • Higher productivity
  • Decay Proof
  • Mass Transfer & Heat Transfer Coefficient
  • No water carry-over
  • Low-Pressure Drop
  • Strong and self-supporting
  • Dirt-resistant
  • Low maintenance

Specifications:

Technical details of our PVC fills.
The standard type of PVC fills. 600mmx300mmx150mm
PVC. 25mm {12. 5 + 12. 5}.
Corrugation pitch. 2. 8 mm.
Corrugation depth 3 mm
Spiral angles. 21
No of PVC sheets per 150 mm width 12
Heat transfer area/cu. Ft. Of fills volume 1 cu. Ft.
The thickness of finished fills. 0. 30 mm
Heat distortion temp. For normal PVC 60 º c
For a high grade. 80 º c { up to 120 º c }
Weight of std. Fills. 800 gm to 1 kg.
  • The evaporative cooling pad is cellulose material impregnated with insoluble anti-rot salts and rigidify saturates.
  • The material has spatial crossing linking technology with high absorbability.
  • It is water-resistant, anti-mildew and has a long service life.



Some of the applications of our cooling pads are:

  • Comfort cooling
  • Vegetable storage
  • Mushroom farming
  • Seed farming
  • Dairy farms

Owing to the immense experience and a competent team of experts, we are able to offer ABS Fills to respectable clients. These ABS fills offered by us are made utilizing high-grade raw material, which is sourced from trustworthy vendors of the market. In addition to this, the offered range of ABS fills is applicable in humidification, effluent treatment, power, petrochemical, refining, paper chemical, steel and allied industries. This ABS Cooling Tower Fills is known for distributing the liquid and gas across the many interconnected channels within the surface material. For inducing highly turbulent mixing between the water and the air, which increases heat and moisture transfer, cross fluted designs are introduced. This Product is made from virgin materials & strength is almost double than any other fills. Generally used for DG set water, maximum load 80°c both side folded & work in any location.
